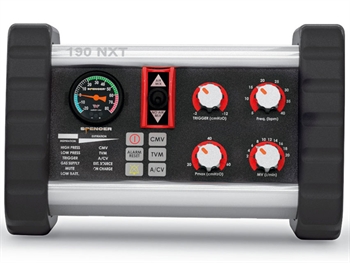

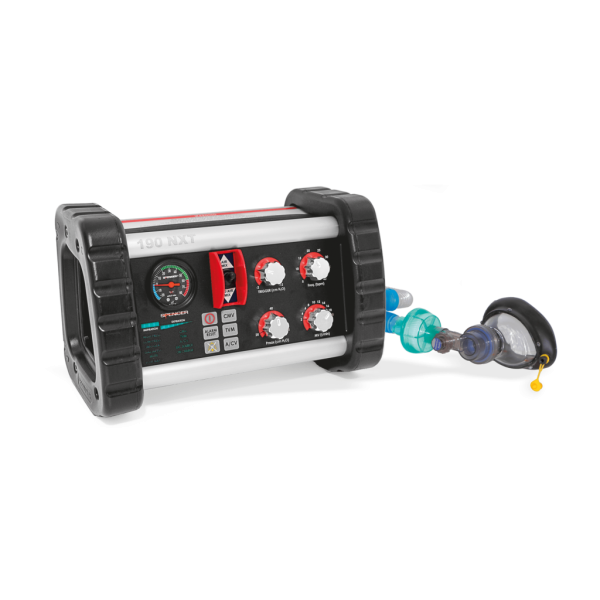

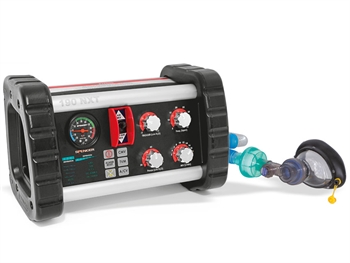

DescriptionElectronic lung ventilators for non invasive ventilation of adult and pediatric patients– protection against accidental activation of the AIR mix selection lever – colour coded manometer for easy identification of pressure ranges – positioning of input and output ports on the side of the device, make connecting and disconnecting easier and offer greater protection to the elements connected to the device – control knobs on high contrast background for a better identification of the set values – compact, lightweight aluminium frame – place and shape of adjustment knobs make the setting of parameters easier in all operative conditions – constant I/E ratio – alarms for ventilation monitoring and device managementVentilator 190 NXT features: – led bar for breath monitoring – three ventilation modes (only one for 34006-7) – CMV: mandatory inflation is initiated according to the set parameters – TVM: inflation initiated according to the set parameters only if triggered by the patient – A/CV: inflation is assured to be initiated at intervals determined by the set rate, unless initiated by an earlier patient trigger event.Made in Italy.Technical Specifications• Drive: Electronic • Frequency: from 5 to 40 BPM • Alarms: – High pressure – Low pressure – Apnea – Pneumatic supply – Low battery • Flow: 2 to 20 l/min • I/E Ratio: 1:2 • Oxygen concentration: 60% or 100% Patented system • Trigger: from -12 to -2 mbar • Overpressure valve: 20-60 cm H2O – adjustable • Battery operating time: Approx. 3 hours • Manometer scale: -20 to 80 mbar • IP protection: IP24 • Non re-breathing valve: 60 cm H2O • Pneumatic supply: from 280 to 600 kPa • Pneumatic connection: UNI • External source: 12 V DC (on request AC/DC adapter 100-240 V, 50/60 Hz) • Internal source: Rechargeable Ni-Mh battery • Dimensions: 330x177x210 mm • Weight: 3.6 kg • Structure: Aluminium, steel, brass, PE
