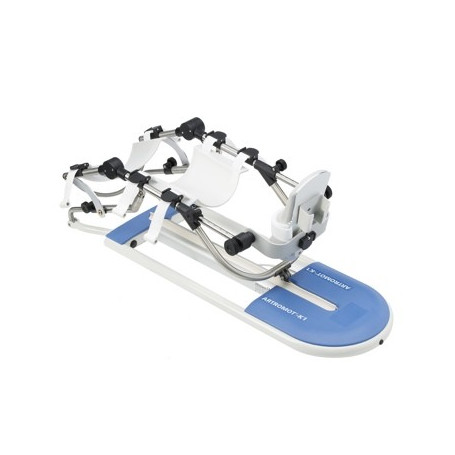

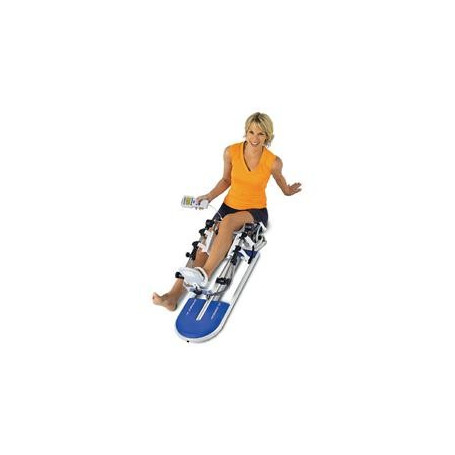

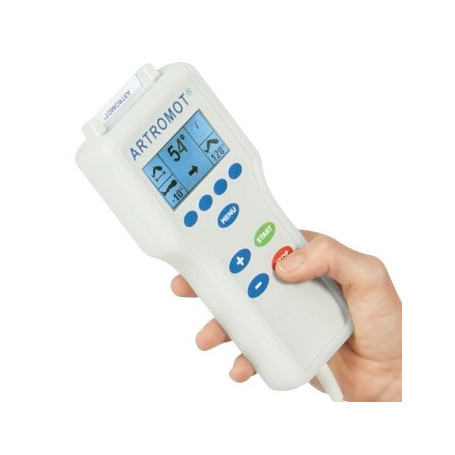

DescriptionArtromot K1 combines the best features of the time-tested Artromot knee machine with state-of-the-art, trend-setting technology. Artromot K1 was developed for the demanding use in clinics and home care/rental programs. Using the Artromot K1 is made easy by intuitive operation of the handheld programming unit with self-explanatory symbols. The motorized CPM device permits extension and flexion of the knee joint in the range of -10°/0°/120°, and of the hip joint in the range of 0°/7°/115°. These are some of the outstanding Artromot K1 features: anatomically correct setup physiological movements programming unit for precise adjustment of patient-specific therapy parameters symbols for easy operation of the programming unit Technical Specifications: Input ratings: 100 – 240 V AC/ 50 – 60 Hz Current consumption: 850 – 370 mA Fuses: 2 x T1A Protection class: I Applied part: type B Dimensions: length: 96 cm width: 35 cm height: min. 23 cm to max. 56 cm Adjustment ranges (min./max.): femur range: approx. 31 – 49 cm lower leg range: approx. 25 – 57 cm Weight: 11 kg Standards compliance: IEC 60601-1:1988 A1:1991 A2:1995 Indications: Arthrotomy and arthroscopy procedures in combination with synovectomy, arthrolysis Treatment following mobilization of joints in anesthetized patients Surgical treatment of fractures and pseudoarthrosis Exercise-stable osteosynthesis Operations on soft tissue in the joint area Patellectomy Corrective osteotomy Meniscectomy Total knee/hip replacement ACL/PCL reconstruction Complex knee surgery Articular cartilage surgery, e.g. autologous chondrocyte transplantation (ACT)
